iMAP Pin
iMAP-Pin
Intra-Medullary Agent Perfusion Pin

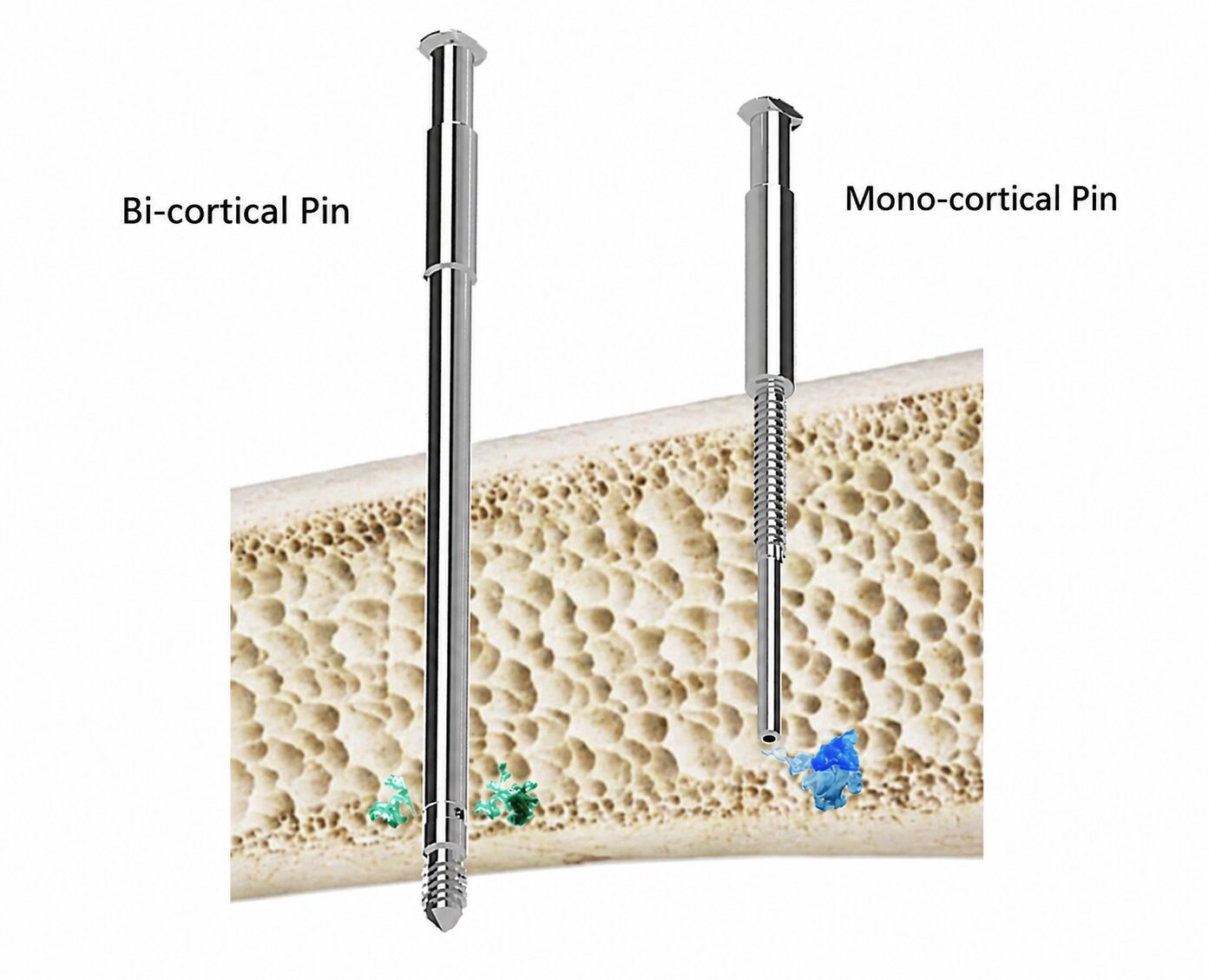

The iMAP Pin (intra-Medullary Agent Perfusion Pin) is an intramedullary perfusion needle designed for indwelling in the medullary cavity for up to 30 days. It enables the infusion of various agents according to clinical needs, including applications such as the CLAP method (Continuous Local Antibiotic Perfusion therapy), with no restriction on the type of agent used. The pin is available in both bicortical and monocortical configurations.

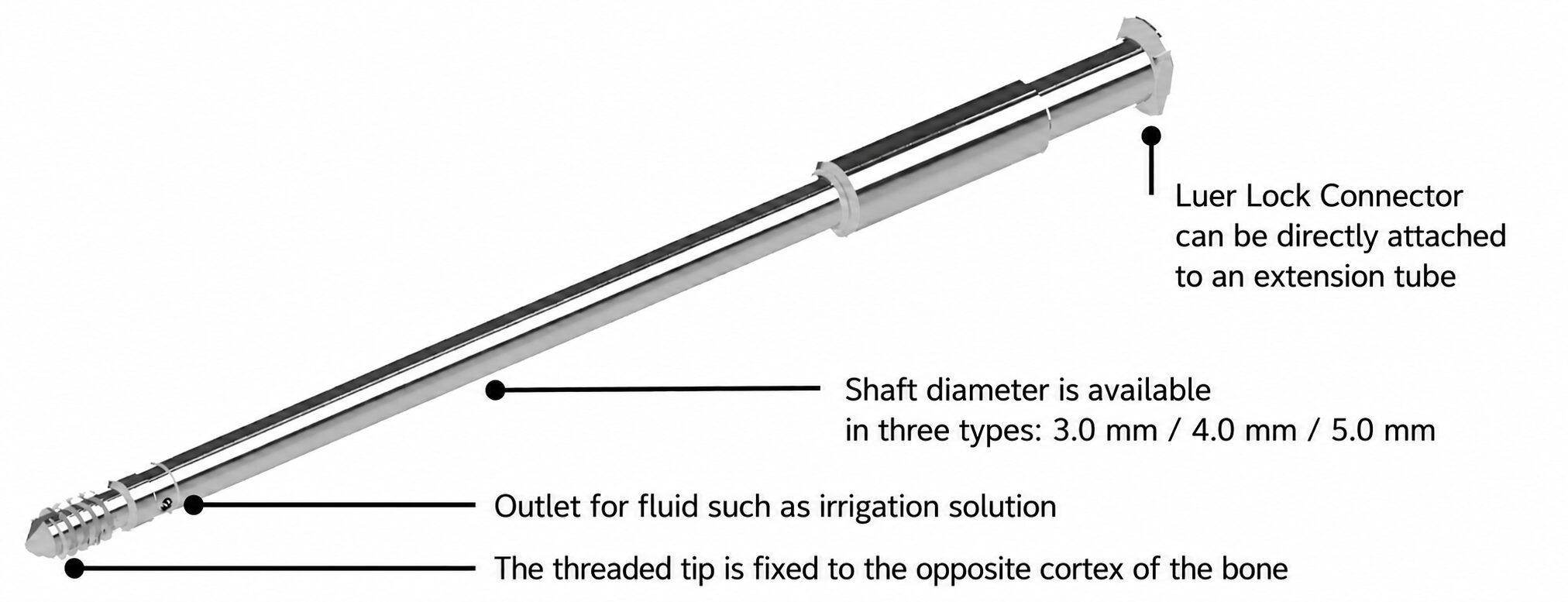

[ iMAP-Pin Bicortical Pin ]
Product Image
(mm)
| Product Name | a | b | Product Number |
| Bicortical Pin φ3.0× 90mm | 3.0 | 90 | CBX03-PB3090 |
| Bicortical Pin φ4.0×100mm | 4.0 | 100 | CBX03-PB4102 |
| Bicortical Pin φ5.0×110mm | 5.0 | 110 | CBX03-PB5110 |

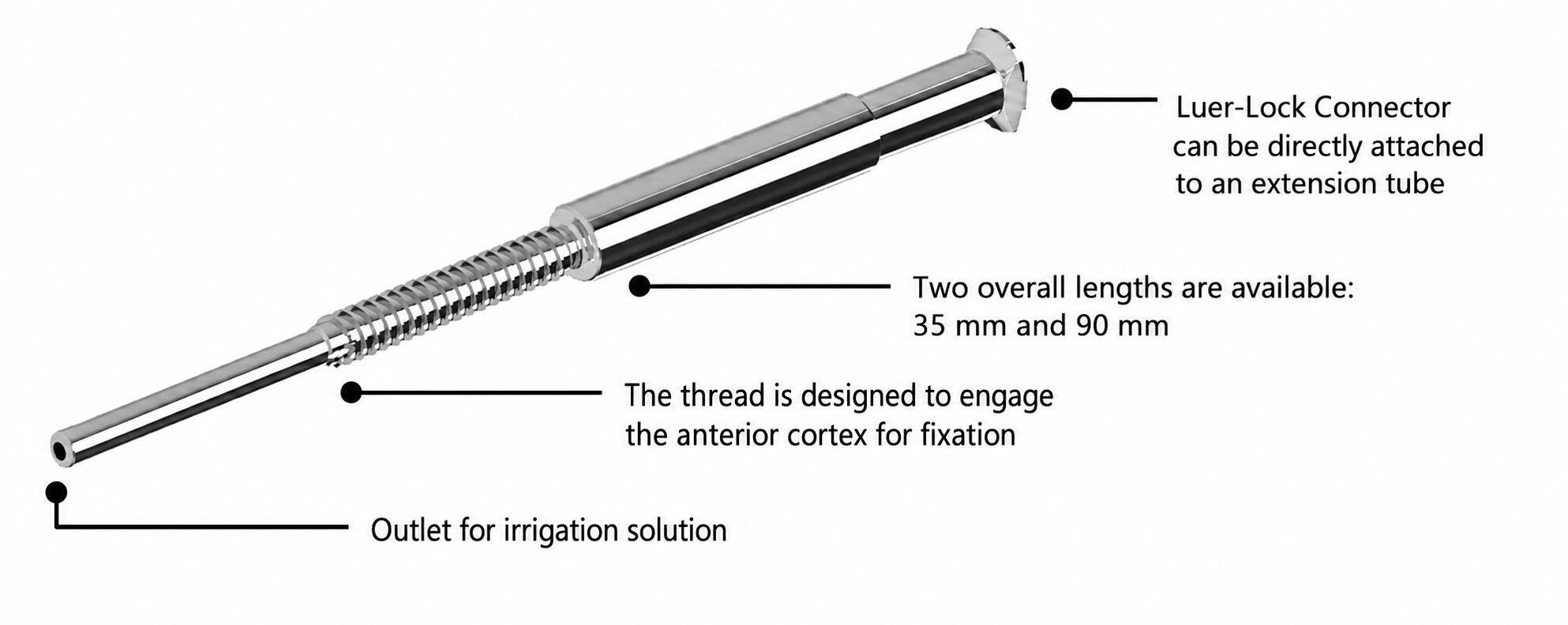

[ iMAP-Pin Monocortical Pin ]
Product Image
(mm)
| Product Name | a | b | c | d | Product Number |
| Monocortical Pin 15 × 35mm | 2.8 | 5 | 10 | 35 | CBX03-PM0350 |
| Monocortical Pin 50 × 90mm | 2.8 | 25 | 25 | 90 | CBX03-PM0900 |
Material：Stainless Steel Model：ＣＢＸIntramedullary Perfusion Needle Approval Number：30500BZX00130000
iMAP Pin Surgical Instruments
| Product Name | Product Number | |
| ① | Pin Driver | CBX-I010 |
| ② | Protective Sleeve | CBX-I011 |
| ③ | Drill Sleeve (for Bi 3.0) | CBX-I012 |
| ④ | Drill Sleeve (for Bi 4.0 / Mono) | CBX-I013 |
| ⑤ | Drill Sleeve (for Bi 5.0) | CBX-I014 |
| ⑥ | Guide Pin Sleeve | CBX-I015 |
| Product Name | Product Number | |
| ⑦ | Depth Gauge for Guide Pin | CBX-I016 |
| ⑧ | Drill Bit (for Bi 3.0, φ 2.4 mm) | SJD24150 |
| ⑨ | Drill Bit (for Bi 4.0, φ 3.2 mm) | SJD32170 |
| ⑩ | Drill Bit (for Bi 5.0, φ 4.0 mm) | SJD40200 |
| ⑪ | Cannulated Drill Bit (for Mono, φ 3.2 mm) | SJD32180C |
| ⑫ | Guide Pin (for Mono, φ 1.2 mm) | KS212180 |
Model：CBX Dedicated Instruments for the Intramedullary Perfusion Needle Notification Number：13B1X10309202301
Model：Drill Bit Notification Number：13B1X10348000006
Model：Guide Pin Notification Number：13B1X10348000003
For detailed information about our products or any inquiries, please contact us via the “Contact Us” page.
For more information about the Himawari Method Surgical Instruments (Helios Locking Pin Sleeve System), please click here.
